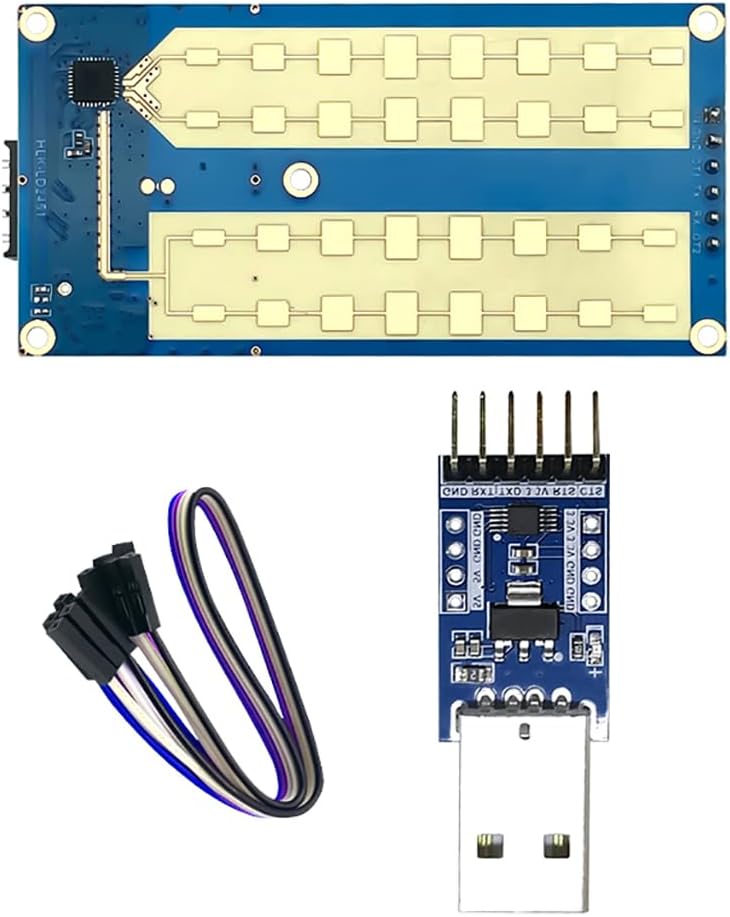

JMT LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra·DAR Adapter (Module Test Kit)

JMT HLK-LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra·dar Adapter Product Description: LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area. Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection. Product features Frequency: 24G-24.25GHz. Sweep bandwidth: 250MHz (meet CE/FCC certification standards). Modulation mode: FMCW. Power Requirement: 5V(Typ.) / power supply capacity >300mA. Exterior dimension: 35×70mm. Detection angle: ±20. Detection distance: Maximum sensing distance 100m. Environment Temperature: -40℃~+85℃. Data format: serial port ASCII output, GPIO level output. Package: default 2.54mm x 6Pin

• LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area.
• Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.
• Modulation mode: FMCW. Detection angle: ±20. default 2.54mm x 6Pin.
• Power Requirement: 5V(Typ.) / power supply capacity >300mA.
• Detection distance: Maximum sensing distance 100m.
• Data format: serial port ASCII output, GPIO level output.
